Digital Smart Lighting Controller
Digital Smart Lighting Controller is a decentralised, IP-based lighting solution for intelligent buildings. Here, standard network cables supply both electricity and information for energy-saving, dimmable LED lighting. This reduces the installation effort compared to conventional networked lighting solutions, since it is not necessary to carry out a separate and cost-intensive installation of a 230-V supply and control BUS.

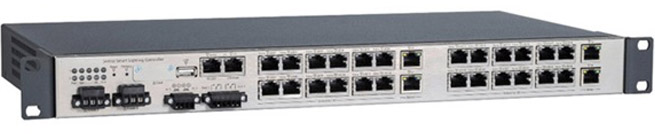

The Centralised Smart Lighting Controller is a multi-port, constant power supply for up to 48 individually controllable LED lamps. Up to 34W are supplied per port by means of standardised twisted-pair cables. The integrated control ensures the generation of uniform light and flicker-free dimming. Motion or presence sensors can be connected via three wired bus inputs. In addition, it is possible to integrate light switches or further sensors or actors via wireless communications into the system.
Key Features
- Fully automated system
- 48 ports at 34W per engine 18VDC–48VDC
- Service-oriented architecture (SOA)
- Dimming of luminaires in voltage
- Seamless, flicker-free dimming
- One data cable for electricity and data (up to 100m/328,08 ft)
- Protection class III Safety Extra Low Voltage, no power cables
- QuickStart of the system in under 15 seconds
- Application programming interface (API)
- BACnet Interface (BMS)
- IP-based
- Maximum Security (SSL)
- Drag & Drop function of elements
- Real-time data for temperature, brightness and presence
- Independent system to LED lamps manufactures
Maximum Energy Savings
- Extremely high efficiency
- Up to 70% reduction of energy costs
- Sensor-based individual control of each fixture (use of light only where it is needed)
- DC power supply for each fixture via CPU enables timed dimming of individual lights
- Daylight detection on each fixture increases efficiency
- No excess heat is produced in the ceiling Low heat is generated centralized only at smart engine (control- and supply-unit)
Minimal Consumption
- Very low power consumption LED lighting
- Very long run-time – up to 100,000 hours
- Little to no heat load
- High light efficiency using very little power
- No extra power supplies/equipment, cables, connections, KNX-/DALI components or breakers
- No power cables needed! Simple and safe – Safety Class III
Fine-Meshed Sensor Network
- Automated control permanently optimizes daily demand for energy
- Monitor movement, daylight and room temperature via a fine-meshed network of sensors
- Fine-meshed sensor system for economization strategies
- Integration of sensors into other facility automation systems
Light via the IT Infrastructure

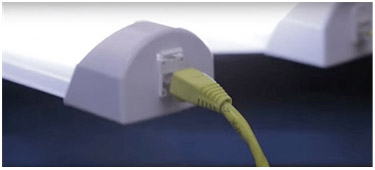

- One data cable per fixture for sensor data and power supply
- One universal network for all IP-based devices
- Improved performance over PoE/PoE+ standards (smart engine 34W/channel vs. PoE+ 25.5W/channel)
- Star-topology connection of fixtures provides highest efficiencyr
- Reliability through redundant patching of the fixtures (fixture 1 engine 1, fixture 2 engine 2)
- More security through Class III resource protection with safety extra-low voltage (SELV/PELV)
- Easy to design and install • smart engine provides constant current
- Very low power loss
- Cable heat generation less than industry standard
Easy to Operate

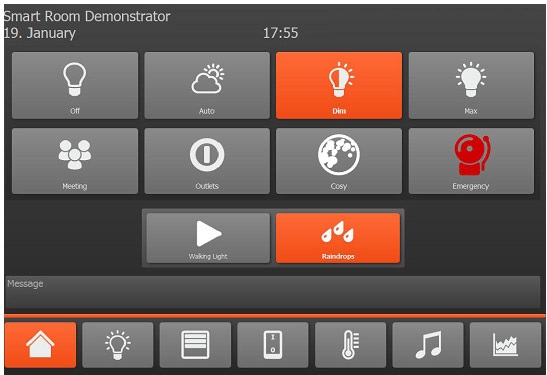

- Central plug & play lighting management via a web-based interface
- Flexible and uninterruptible allocation of fixtures and room changes (no physical engagement required)
- Open platform (API) for connecting various facility management systems
- Integration of various buildings into one system >>> central monitoring
- Data acquisition in real time (temperature, consumption, movement) >>> Data will not identify any individual
- Data analysis for economization strategies
- Remote access possible from anywhere
- Control via smartdevices (apps)
- Integrated HVAC interface (e.g. BACnet)
